PRISM (PaRametrIc System Model)

Engine Pc/MR Study PRISM v1.1.7
by: O.F. Design May 05, 2018
Design Variable Summary
Design Variables (nominal values)
NameValueUnitsDescription
PengInFuel 286psiaFuel Engine Inlet Pressure (psia)
PengInOx 277.7psiaOx Engine Inlet Pressure (psia)
Result Variables
NameValueUnitsDescriptionConstrainLimit

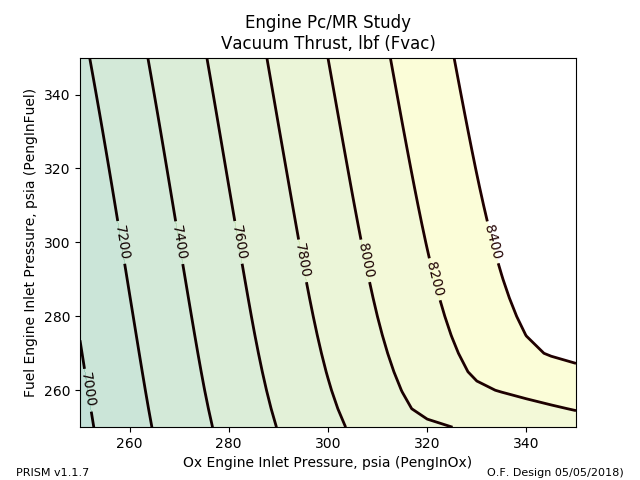

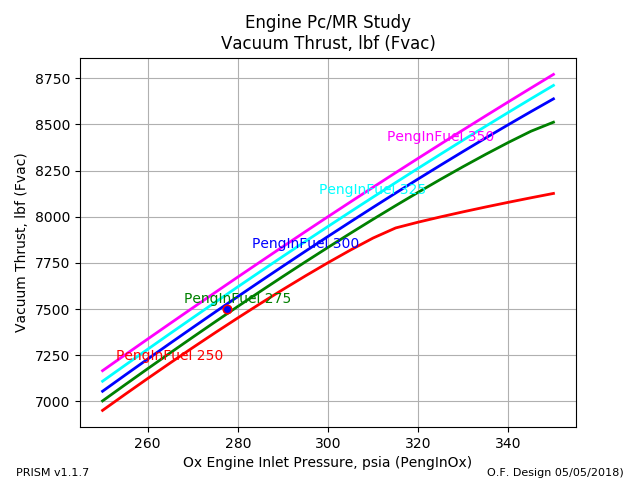

Fvac 7500 lbfVacuum Thrust (lbf)---

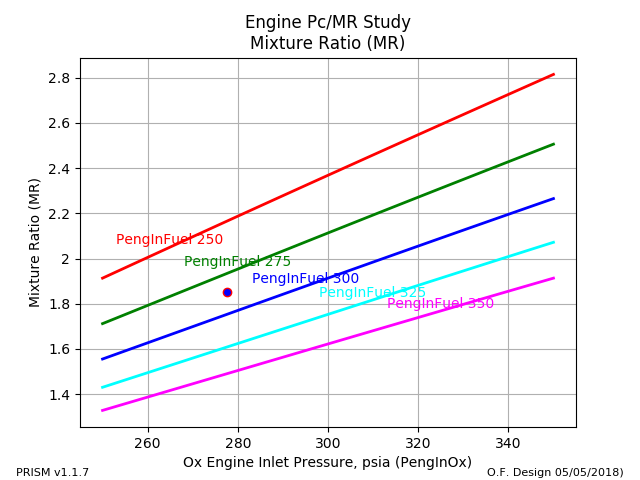

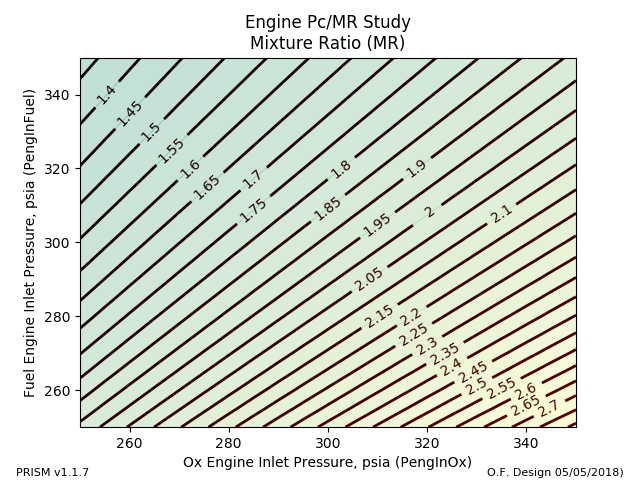

MR 1.85 Mixture Ratio---

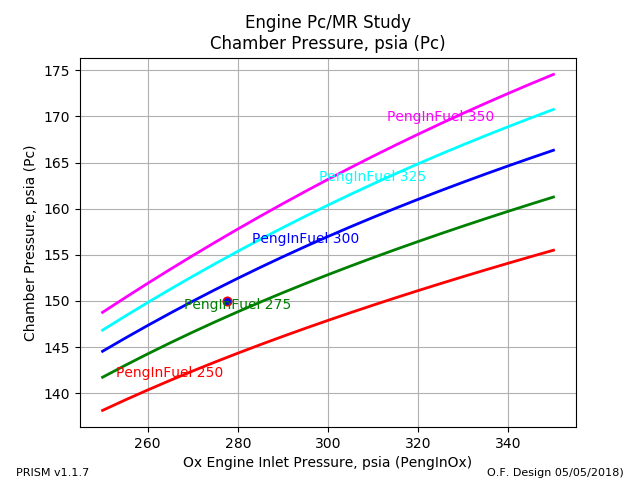

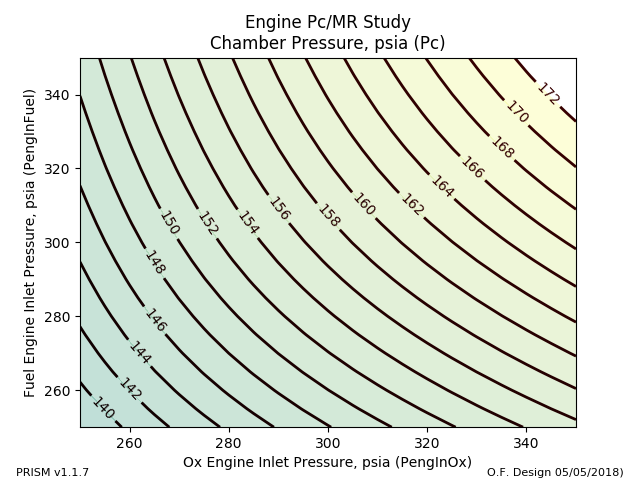

Pc 150 psiaChamber Pressure (psia)---
sysMass 0 lbmTotal System Mass (lbm)---

(PRISM) PaRametrIc System Model
PRISM v1.1.7
contact: C. Taylor, cet@appliedpython.com
